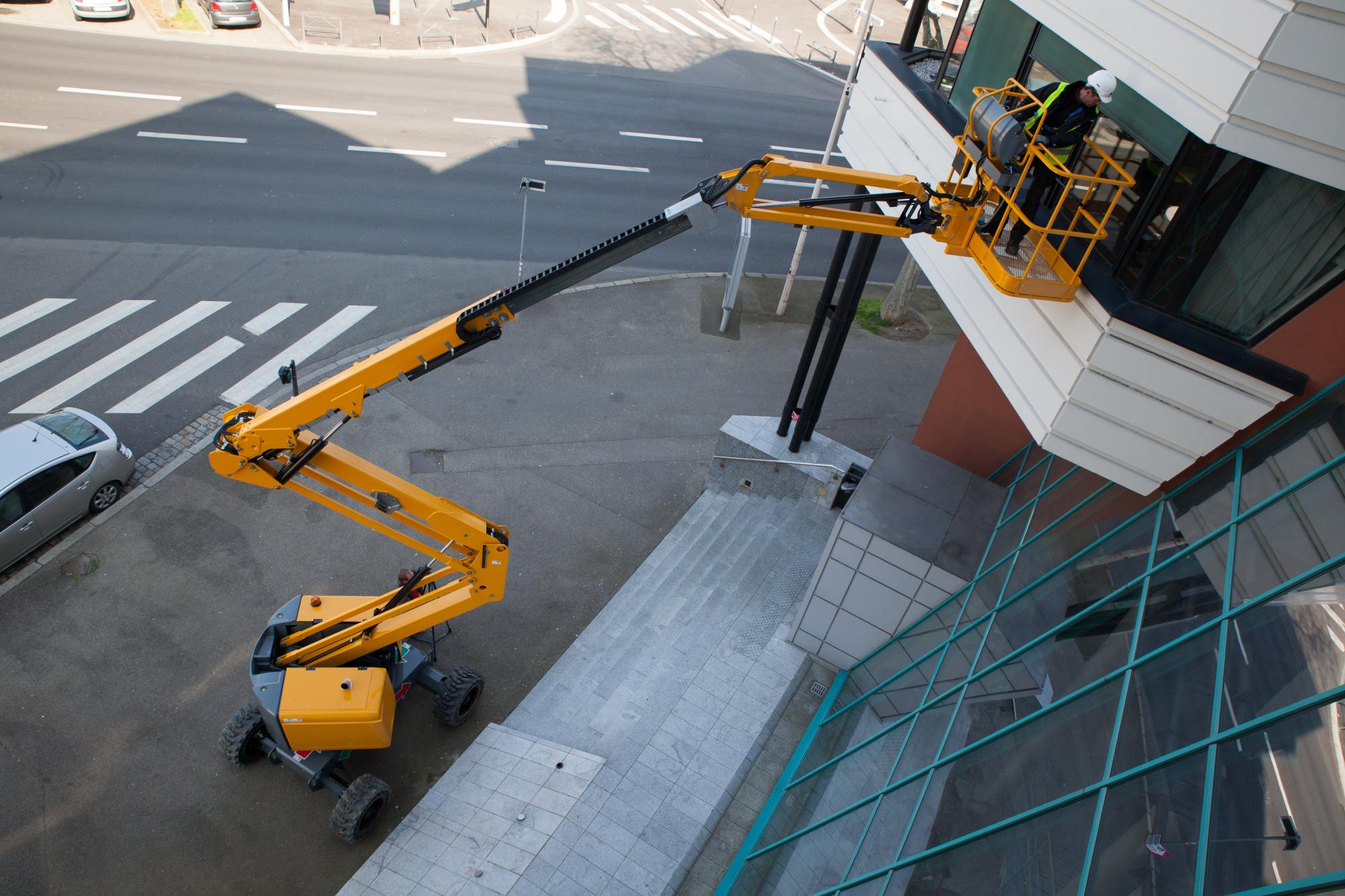

AH-16 JRT O Articulated Boom Lift

Technical
Capabilities

  View PDF Datasheet

• Performance & Ease of use
• Best lifting speed of 40 sec
• Fully proportional and Simultaneous movements
• Ease of transport
• Excellent Robustness
• Rugged hoods with ergonomic handle
• Easy Maintenance
• Fully modular basket with upper control box cover
• Easy access to all components
• Self-diagnosis tool on lower control box
• Best Comfort and Safety Feeling
• Safe driving
• Industry leading working envelope with an outreach of 8.3 m
• Long lasting structural design

• Working Height: 16 m (48 ft)
• Platform Height: 14 m (42ft)
• Horizontal Outreach: 8.3 m (28 ft)
• Up and Over Clearance: 7.65 m (20 ft)
• Lift Capacity: 230 kg (507 Ibs)

• Kubota 26 kW - 35 hp

• 4 wheel drive
• 2 wheel steer
• Front oscillating axle increases stability on uneven ground
• Permanent limited slip differential
• 230 kg (2 persons) load capacity
• 4 simultaneous movements for maximum productivity
• Safe to use in winds up to 60km/h - 37mph
• Rotating beacon
• Modular standard basket 1.83 m x 0.80 m, quick & easy to repair
• Drop bar entry gate
• Upper control box cover
• Tool tray
• AC power to platform (110/230V)
• Self-diagnosis tool on lower control box
• Swing out engine tray for ease of maintenance
• Hour meter
• Low fuel level indicator (upper & lower control boxes)
• Engine pre-heater with light indicator
• Sound and light alarm for tilt and load
• 12 V battery / electrical control system
• Electric pump system and emergency descent
• Travel alarm
