Working At Height with the:

Genie® Z34 / 22IC Articulated Boom Lift

WORKING HEIGHT: 12.52 m (40 ft 6 in)
POWER: DIESEL


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

Working At Height with the:

Genie® Z34 / 22IC Articulated Boom Lift

WORKING HEIGHT: 12.52 m (40 ft 6 in)
POWER: DIESEL


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Technical Capabilities

Talk to our expert team on 01483 415 410

PLATFORM OPTIONS
• Steel 1.42 m (4 ft 8 in) (standard)
• Steel 1.17 m (3 ft 10 in)

JIB
• 1.22 m (4 ft) jib boom

POWER OPTIONS
• Kubota DF-972 3-cylinder gas/LPG 32 hp (24 kW)
• Kubota D-1105 3-cylinder diesel 25 hp (18 kW)
• Perkins 403 D11 3-cylinder diesel 26 hp (19.5 kW)

DRIVE OPTIONS
• 2WD
• 4WD

TYRE OPTIONS
• Industrial air-filled (standard 2WD)
• Rough terrain air-filled (standard 4WD)
• Industrial foam-filled
• Industrial non-marking air or foam-filled
• Rough terrain foam-filled
• High flotation air-filled
• Sealant treated air-filled

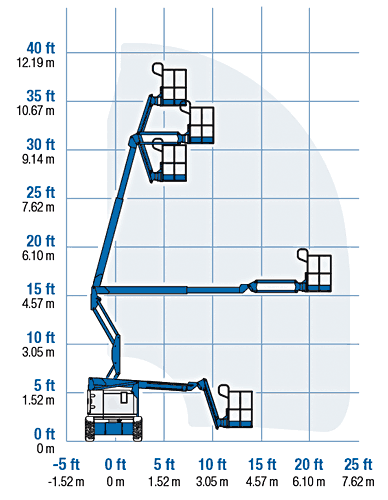

GENIE Z-34/22 IC ACCESS PLATFORM SPEC
Z™-34/22 IC 2WD

• 12.52 m (40 ft 6 in) working height
• 6.78 m (22 ft 3 in) horizontal reach
• 4.54 m (14 ft 11 in) up and over clearance
• Up to227 kg (500 lb) lift capacity

Z™-34/22 IC 4WD
• 12.62 m (40 ft 10 in) working height
• 6.78 m (22 ft 3 in) horizontal reach
• 4.57 m (15 ft) up and over clearance
• Up to 227 kg (500 lb) lift capacity

FOR GENIE Z-34/22 IC OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET

BOOM LIFT STANDARD FEATURES
• 1.22 m (4 ft) jib with 139° working range
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 355° non-continuous turntable rotation
• Locking turntable covers
• Zero tailswing and front arm swing
• Two speed wheel motors

POWER
• All engines are emissions compliant
• 12V DC auxiliary power
