Boom Platforms

Working At Height with the:

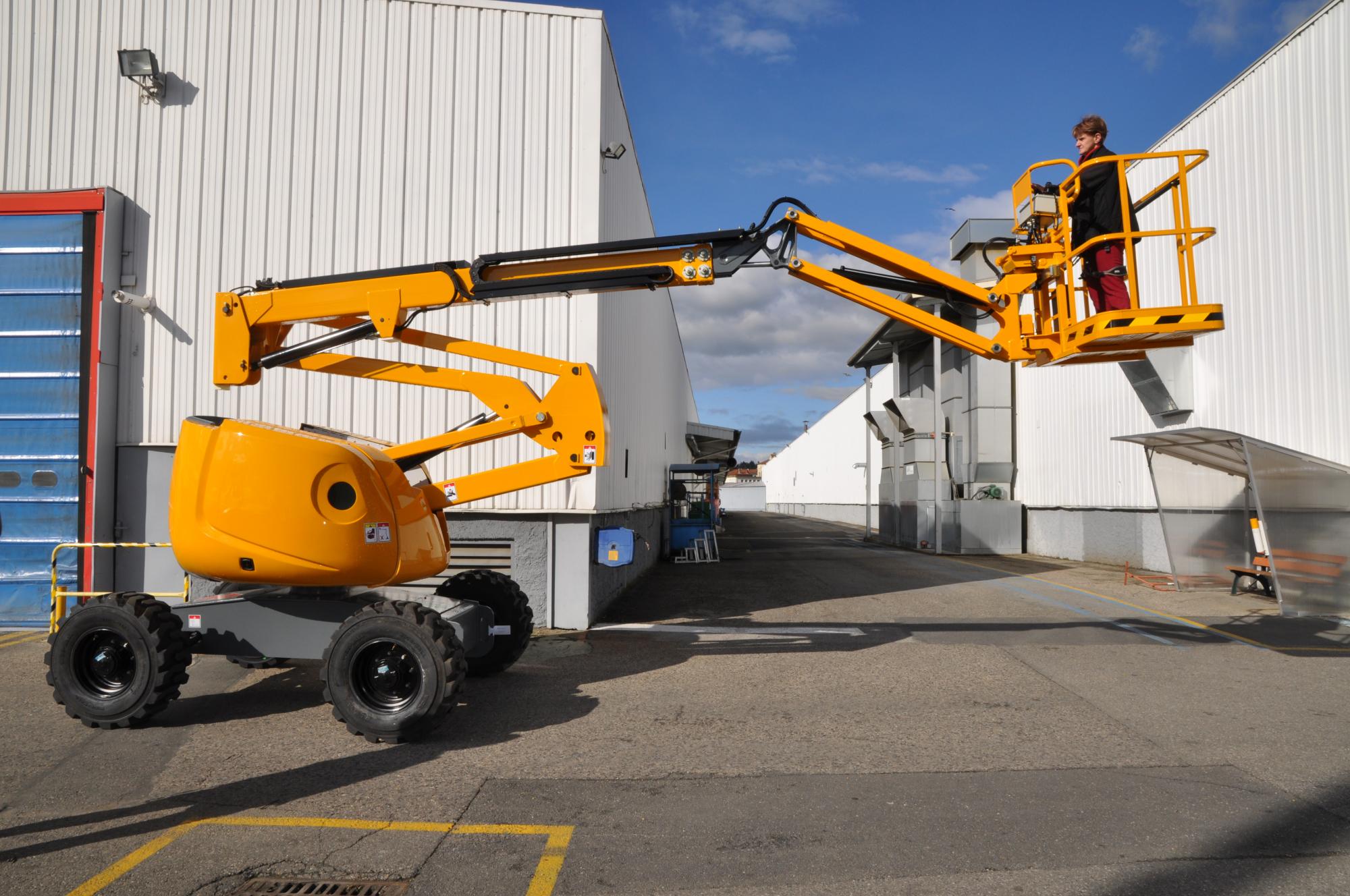

AH-18 Articulated Boom Lift

WORKING HEIGHT: 17.3m (56ft)
POWER: DIESEL


Our AH engine powered articulating boom access platforms provide lifting versatility with a stunning combination of up, out and over positioning capabilities and extensive outreach. These access platforms also offer high ground clearance, two- or four-wheel drive options and rough terrain features for easy travel over irregular ground.



Technical Capabilities

Talk to our expert team on 01483 415 410

Contact US

Working At Height with the:

AH-18 Articulated Boom Lift

WORKING HEIGHT: 17.3m (56ft)
POWER: DIESEL


Our AH engine powered articulating boom access platforms provide lifting versatility with a stunning combination of up, out and over positioning capabilities and extensive outreach. These access platforms also offer high ground clearance, two- or four-wheel drive options and rough terrain features for easy travel over irregular ground.



Technical Capabilities

Talk to our expert team on 01483 415 410

Technical
Capabilities

  View PDF Datasheet
AH-18 ACCESS PLATFORM KEY FEATURES
  • Optimal productivity
  • Continuous 360° turntable rotation
  • Full proportional controls and simultaneous boom functions
  • Lifts to full height in 44 seconds
  • Outstanding rough terrain driving features
  • 4 wheel steer and 4 wheel drive mean greater manoeuvrability
  • Hydraulic differential lock
  • 40cm ground clearance
  • 10.6 metre outreach provides a large working envelope
AH-18 ACCESS PLATFORM SPECIFICATION
  • Working Height: 17.3 m (56 ft)
  • Platform Height: 15.3 m (50 ft)
  • Horizontal Outreach:10.6 m (34 ft)
  • Up and Over Clearance: 6.6 m (21 ft)
  • Lift Capacity: 230 kg (507 Ibs)
POWER
  • 31 kW - 42 hp
AH-18 ACCESS PLATFORM STANDARD EQUIPMENT
  •  4 wheel drive and steer
  • Continuous 360° turntable
  • Safe to use in winds up to 60km/h
  • Swing out engine tray for ease of maintenance
  • 72 l fuel tank; 1.50 m filling height
  • 5° tilt alarm
  • 12 V battery / electrical control system
  • Auxiliary power in the platform for emergency descent
  • Brake release
  • Hour meter
  • Slewing block pin
  • Towing hooks / lifting eyes
