Boom Platforms

Working At Height with the:

Genie® Z80/60 Articulated Boom Lift

WORKING HEIGHT:  25.77 m (84 ft)
POWER: DIESEL


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

Working At Height with the:

Genie® Z80/60 Articulated Boom Lift

WORKING HEIGHT:  25.77 m (84 ft)
POWER: DIESEL


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Technical Capabilities

Talk to our expert team on 01483 415 410

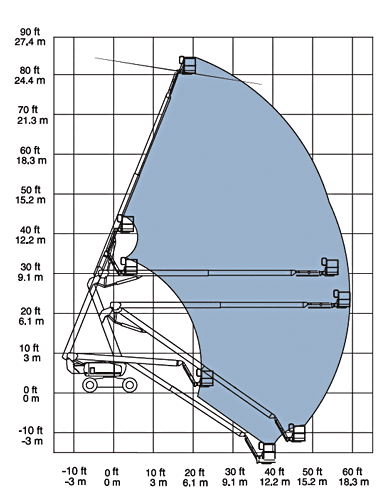

GENIE Z-80/60 PLATFORM SPECIFICATION
• 25.77 m (84 ft) working height
• 18.28 m (60 ft) horizontal reach
• 8.83 m (29 ft) up and over clearance
• Up to227 kg (500 lb) lift capacity

PLATFORM OPTIONS
• Steel 2.44 m (8 ft) (standard)
• Steel 1.83 m (6 ft)
• Steel 1.83 or 2.44 m (6 or 8 ft) tri-entry
• Steel 1.22 m (4 ft)
• Steel 1.52 m (5 ft)
JIB • 1.83 m (6 ft) jib boom

AXLE
• Active oscillation
DRIVE/STEER OPTIONS
• 2WD (standard)
• 4WD
• 2WS (standard)
• 4WS

POWER OPTIONS
• Deutz diesel 78 hp (58 kW)
• Perkins diesel 63 hp (47 kW)
• Continental gas/LPG 74 hp (55 kW)

FOR GENIE Z-80/60 OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET

TYRE OPTIONS
• Rough terrain foam-filled (standard)
• Rough terrain non-marking foam-filled
• High flotation rough terrainBOOM LIFT STANDARD FEATURES
• 1.83 m (6 ft) jib with 135° range
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional Hall effect controls
• On-board diagnostics
• ALC 1000 electronic control system
• Hydraulic oil cooler
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Locking turntable covers
• Full-time positive traction drive
• Two speed wheel motors
• Four steering modes: front, rear, crab and coordinated
• Configurable controls to limit lift height to 70 ft
