Boom Platforms

Working At Height with the:

Genie® Z45 / 25RT (Rough Terrain) Articulated Boom Lift

WORKING HEIGHT: 16.00 m (51 ft 11 in)
POWER: DIESEL


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

Contact US

Working At Height with the:

Genie® Z45 / 25RT (Rough Terrain) Articulated Boom Lift

WORKING HEIGHT: 16.00 m (51 ft 11 in)
POWER: DIESEL


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Technical Capabilities

Talk to our expert team on 01483 415 410

Watch Video

  View PDF Datasheet

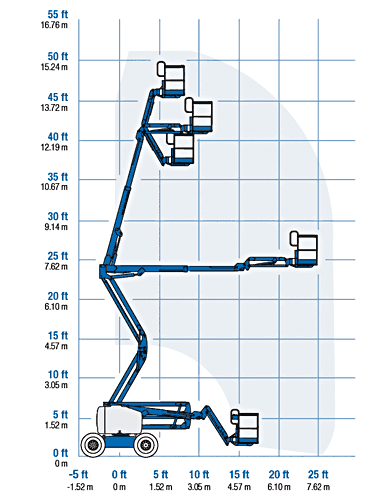

  View Chart
PLATFORM OPTIONS
• Steel 1.83 m (6 ft) (standard)
• Steel 1.22 or 1.52 m (4 or 5 ft)
• Steel 1.83 m (6 ft) tri-entry

POWER OPTIONS
• Ford gas/LPG 75 hp (56 kW)
• Deutz diesel 48 hp (35.8 kW)
• Perkins diesel 51 hp (38 kW)

DRIVE OPTIONS
• 2WD
• 4WD

AXLE OPTIONS
• Active oscillation (standard on 4WD)
• Non-oscillating
TYRE OPTIONS
• Rough terrain air-filled (standard)
• Rough terrain foam-filled
• Rough terrain non-marking (air or foam-filled)
• High flotation
• Sealant treated air-filled

GENIE Z-45/25 RT PLATFORM SPECIFICATION
• 16.00 m (51 ft 11 in) working height
• 25 ft (7.62 m) horizontal reach
• 23 ft 6 in (7.16 m) up and over clearance
• Up to 227 kg (500 lb) lift capacity

POWER
• All engines are emissions compliant
• 12 V DC auxiliary power
• Engine protection package
• Deutz intake air heater
• Swing out engine tray
FOR GENIE Z-45/25 RT OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET

BOOM LIFT STANDARD FEATURES
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 355° non-continuous turntable rotation
• Positive traction drive
• Two speed wheel motors
