Working At Height with the:

Genie® Z45 / 25DC Articulated Boom Lift

WORKING HEIGHT: 15.87 m (51 ft 6 in)
POWER: BATTERY


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

Working At Height with the:

Genie® Z45 / 25DC Articulated Boom Lift

WORKING HEIGHT: 15.87 m (51 ft 6 in)
POWER: BATTERY


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Technical Capabilities

Talk to our expert team on 01483 415 410

PLATFORM OPTIONS
• Steel 1.83 m (6 ft) (standard)
• Steel 1.22 or 1.52 m (4 or 5 ft)
• Steel 1.83 m (6 ft) tri-entry

POWER
• 48V DC (eight 6V 350 Ah batteries)

BATTERY CHARGING OPTIONS
• 25 Amp 48V onboard charger
• Onboard alternator powered by Kubota diesel 12 hp (8.9 kW) engine

DRIVE
• 2WD

TYRE OPTIONS
• Industrial foam-filled (standard)
• Industrial non-marking foam-filled

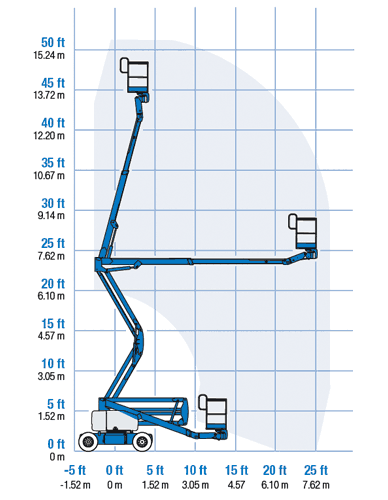

GENIE Z-45/25 DC ACCESS PLATFORM SPECIFICATION
• 15.87 m (51 ft 6 in) working height
• 7.62 m (25 ft) horizontal reach
• 7.04 m (23 ft 1 in) up and over clearance
• Up to 227 kg (500 lb) lift capacity

POWER
• 48V DC deep cycle battery pack
• 24V DC auxiliary power
• Battery charge indicator-BCI
(Bi-energy only)

FOR GENIE Z-45/25 DC OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET
BOOM LIFT STANDARD FEATURES
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Thumb rocker steer
• Drive enable
• AC power to platform
• Horn
• Hour meter
• Tilt alarm
• 355° non-continuous turntable rotation
• Zero  tailswing
