Working At Height with the:

Genie® Z40 / 23N (Narrow) Articulated Boom Lift

WORKING HEIGHT: 14.32 m (46 ft 5 in)
POWER: BATTERY


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

Working At Height with the:

Genie® Z40 / 23N (Narrow) Articulated Boom Lift

WORKING HEIGHT: 14.32 m (46 ft 5 in)
POWER: BATTERY


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.

Technical Capabilities

Talk to our expert team on 01483 415 410

PLATFORM OPTIONS
• Steel 1.42 m (4 ft 8 in) (Z40N only)
• Steel 1.17 m (3 ft 10 in) (Standard on
Z40N RJ, option on Z40N)

POWER
• 48 V DC (eight 6 V 350 Ah batteries)

BATTERY CHARGING
• 25 Amp 48 V DC onboard charger

DRIVE
• 2WD Electric AC

TYRE
• Solid rubber non-marking

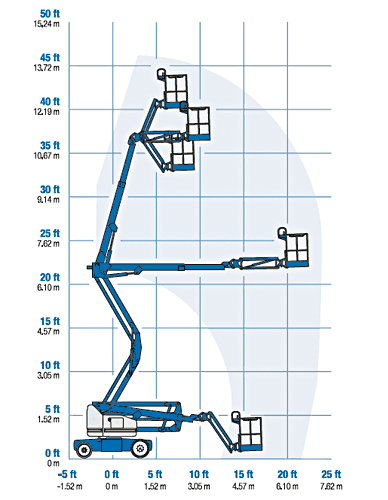

GENIE Z-40/23N SPECIFICATION
• 14.32 m (46 ft 5 in) working height
• 6.91 m (22 ft 8 in) horizontal reach
• 6.48 m (21 ft 3 in) up and over clearance
• Up to 227 kg (500 lb) lift capacity

POWER
• 48 V DC deep cycle battery pack
• 24 V DC auxiliary power
• 25 Amp 48 V battery charger
• Battery charge indicator
• Low battery voltage interrupt

FOR GENIE Z-40/23N OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET
BOOM LIFT STANDARD FEATURES
• 1.50 m (4 ft 11 in) width
• .87 m (2 ft 11 in) inside turning radius
• 1.22 m (4 ft) jib boom with 130° working range
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent, motion, & travel alarms
• Hydraulic filter condition monitor
• 355° non-continuous turntable rotation
• Variable speed high efficiency hydraulic power unit
• AC electric drive system
• Traction control
• On-board easy to understand diagnostics
