Genie® Z34/22N (Narrow) Articulated Boom Lift

WORKING HEIGHT: 12.52 m (40 ft 6 in)
POWER: BATTERY

The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery, bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

get in touch

tell us a little about your working at height project and we will be in
touch to offer our expert advise and opinion.

Working At Height with the:

Genie® Z34/22N (Narrow) Articulated Boom Lift

WORKING HEIGHT: 12.52 m (40 ft 6 in)
POWER: BATTERY

Technical Capabilities

Talk to our expert team on 01483 415 410

Watch Video

View PDF Datasheet

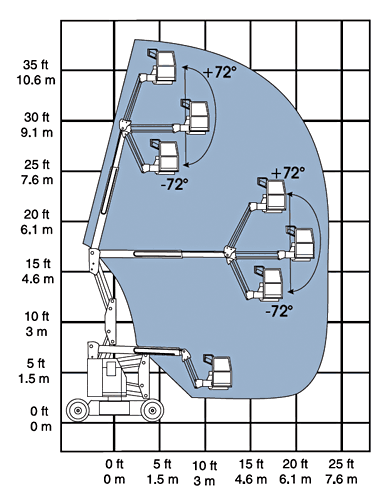

View Chart

PLATFORM
• Steel 1.42 m (4 ft 8 in) (standard)
• Steel 1.17 m (3 ft 10 in)

JIB
• 1.22 m (4 ft) jib boom

POWER
• 48V DC power source

DRIVE
• 2WD

TYRE
• Solid rubber non-marking

GENIE Z-34/22N ACCESS PLATFORM SPECIFICATION
• 12.52 m (40 ft 6 in) working height
• 6.78 m (22 ft 3 in) horizontal reach
• 4.62 m (15 ft 2 in) up and over clearance
• Up to 227 kg (500 lbs) lift capacity

POWER
• 48V deep cycle battery pack
• 24V DC auxiliary power
• 25 Amp 48 V battery charger

FOR GENIE Z-34/22N OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET

BOOM LIFT STANDARD FEATURES
• 1.22 m (4 ft) jib boom with 139° working range
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent & travel alarms
• 355° non-continuous turntable rotation
• Zero tailswing
• Sep-Ex drive system
