Boom Platforms

Working At Height with the:

Genie® Z30/20NRJ (Narrow Rotating JIB) Articulated Boom Lift

WORKING HEIGHT: 10.89 m (35 ft 2 in)
POWER: BATTERY


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability, just about every working at height problem can be solved using one of our Z boom platforms, the Z configuration allows articulation so offers great versatility, choose from our smallest boom platform, the Z30/20N through to largest, the Z135/70 access platform, on many of our mid range platforms you have choice of power sources, with battery, bi-energy, propane and diesel all available.

Watch Video

Talk to our expert team on 01483 415 410

Working At Height with the:

Genie® Z30/20NRJ (Narrow Rotating JIB) Articulated Boom Lift

WORKING HEIGHT: 10.89 m (35 ft 2 in)
POWER: BATTERY


The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability, just about every working at height problem can be solved using one of our Z boom platforms, the Z configuration allows articulation so offers great versatility, choose from our smallest boom platform, the Z30/20N through to largest, the Z135/70 access platform, on many of our mid range platforms you have choice of power sources, with battery, bi-energy, propane and diesel all available.

Technical Capabilities

Talk to our expert team on 01483 415 410

PLATFORM
• Steel 1.17 m (3 ft 10 in) (standard)

JIB OPTIONS
• 1.22 m (4 ft) jib boom
• 1.22 m (4 ft) horizontal rotating jib boom

POWER
• 48 V DC power source

DRIVE
• 2WD

TYRE
• Solid rubber non-marking

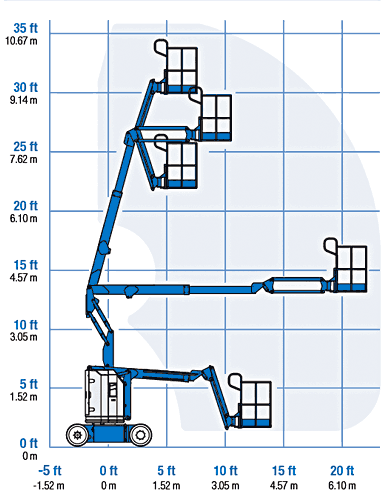

GENIE Z-30/20NRJ ACCESS PLATFORM SPECIFICATION
Z™-30/20N RJ

• 10.89 m (35 ft 2 in) working height
• 6.25 m (20 ft 6 in) horizontal reach
• 3.86 m (12 ft 8 in) up and over
clearance
• Up to 227 kg (500 lb) lift capacity

FOR GENIE Z-30/20NRJ OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET

POWER
• 48 V DC deep cycle battery pack
• 24 V DC auxiliary power
• 25 Amp 48 V battery charger

BOOM LIFT STANDARD FEATURES
• 1.22 m (4 ft) jib boom with 139°
working range
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent & travel alarms
• 355° non-continuous turntable rotation
• Zero tailswing and front arm swing
• Sep-Ex drive system
