Working At Height with the:

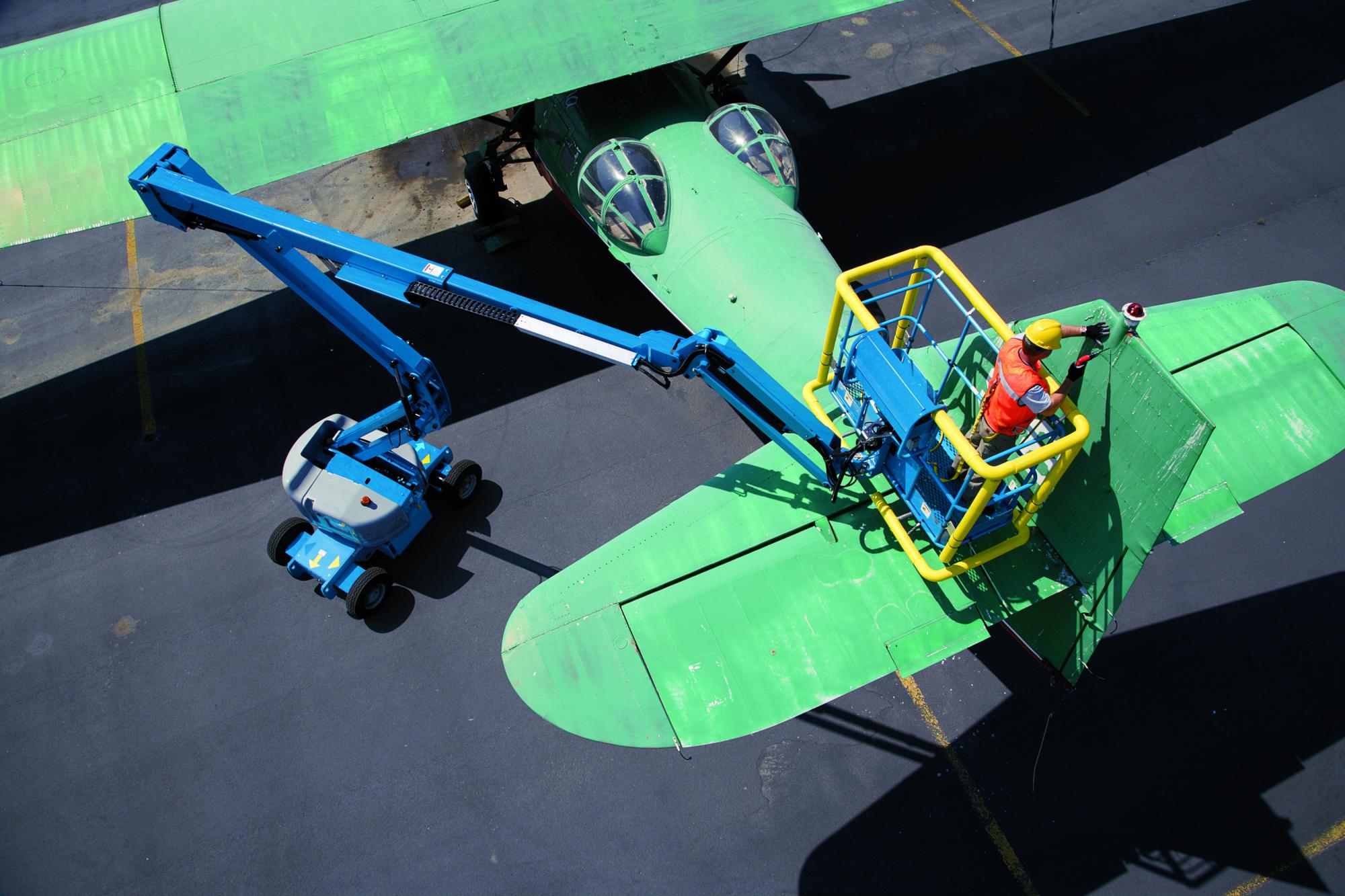

GENIE Z4525 J (JIB) ARTICULATING BOOM ACCESS PLATFORM

The Genie Z boom range of fully self-propelled access platforms have a tremendous reputation for safety and reliability. Just about every working at height problem can be solved using one of our Z boom platforms as the Z configuration allows articulation, offering great versatility. Choose from our smallest boom platform -the Z30/20N, through to our largest access platform - the Z135/70. On our mid-range platforms you also have a choice of power sources, with battery,  bi-energy, propane and diesel all available.



Technical Capabilities

Talk to our expert team on 01483 415 410

Technical
Capabilities

PLATFORM OPTIONS
• Steel 1.83 m (6 ft) (standard)
• Steel 1.22 or 1.52 m (4 or 5 ft)
• Steel 1.83 m (6 ft) tri-entry
POWER
• 48V DC (eight 6V 350 Ah batteries)
JIB OPTIONS
• Non-jib
• Articulating 1.52 m (5 ft) jib boom
BATTERY CHARGING OPTIONS
• 25 Amp 48V onboard charger
• Onboard alternator powered by Kubota
diesel 12 hp (8.9 kW) engine
DRIVE
• 2WD
TYRE OPTIONS
• Industrial foam-filled (standard)
• Industrial non-marking foam-filled
GENIE Z-45/25J SPECIFICATION
• 15.92 m (51 ft 8 in) working height
• 7.65 m (25 ft 1 in) horizontal reach
• 6.73 m (22 ft 1 in) up and over clearance
• Up to 227 kg (500 lb) lift capacityBOOM LIFT STANDARD FEATURES
• Self-leveling platform
• Hydraulic platform rotation
• Fully proportional controls
• Thumb rocker steer
• Drive enable
• AC power to platform
• Horn
• Hour meter
• Tilt alarm
• 355° non-continuous turntable rotation
• Zero tailswing

POWER
• 48V DC deep cycle battery pack
• 24V DC auxiliary power
• Battery charge indicator-BCI (Bi-energy only)
FOR GENIE Z-45/25J OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET
